Chipset: | RTL8822CS | WiFi-Standard: | IEEE802.11a/b/g/n/ac |
---|---|---|---|
Häufigkeit: | 2.4GHz ~5.8GHz | Schnittstelle: | SDIO/Uart/PCM |
OS-Unterstützung: | Windows/Android /Linux | Marke: | F-N-Verbindung |
Größe: | 15.0x13.0x1.8mm | Anwendung: | Tablet/intelligentes TV/IPTV/OTT/IPC |
Höhepunkt: | kombiniertes Modul wifi BT,wifi Modul niedriger Energie,drahtloses Transceivermodul der Stempellöcher |

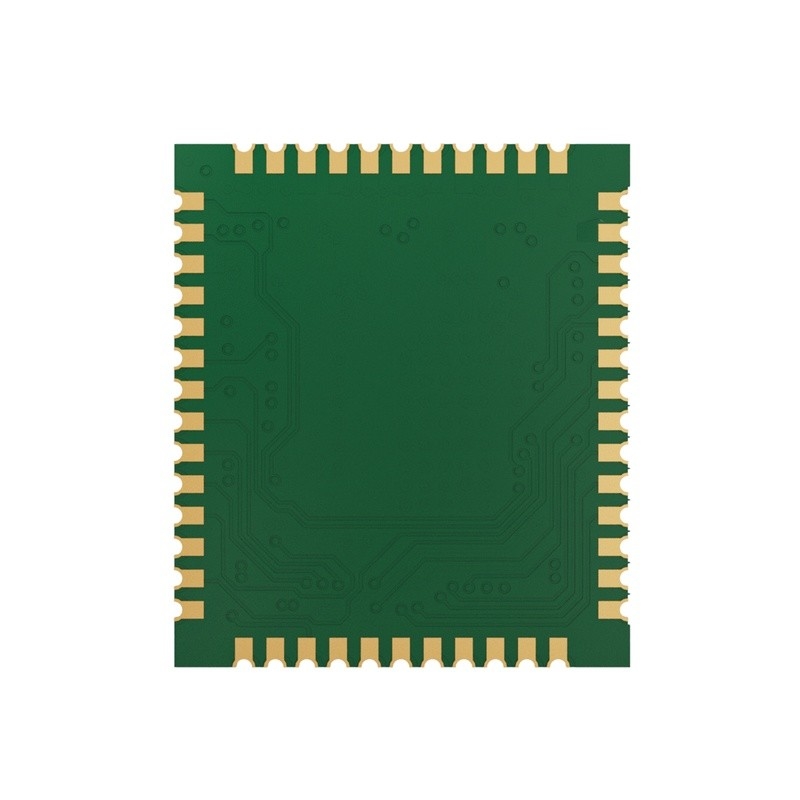

Stempellöcher 802.11ac Dual-Band-Modul von RTL8822CS 802.11ac+Bluetooth für OTT/TV
6222B-SRC ist ein kostengünstiges und energieeffizientes Modul mit allen Wi-Fi-Funktionen.Für den Betrieb im drahtlosen LAN (WLAN)Das integrierte Modul bietet eine SDIO-Schnittstelle für Wi-Fi. Das Modul bietet einfache Legacy- und 20MHz/40MHz/80MHz-Koexistenzmechanismen, um die Rückwärts- und Netzwerkkompatibilität zu gewährleisten.
Das drahtlose Modul entspricht dem IEEE 802.11 a/b/g/n/ac 2x2 MIMO-Standard und kann bis zu einer Geschwindigkeit von 867 Mbps mit Dual-Stream in 802.11n zur Verbindung des drahtlosen LAN erreichen.Das integrierte Modul bietet SDIO-Schnittstelle für Wi-Fi, UART/PCM-Schnittstelle für Bluetooth.
Dieses kompakte Modul ist eine Gesamtlösung für eine Kombination aus Wi-Fi- und Bluetooth-V4.2-Technologien.
Eigenschaften
Allgemeine Spezifikation
Modellbezeichnung | 6222B-SRC |
Beschreibung des Produkts | Unterstützung von Wi-Fi/Bluetooth-Funktionen |
Abmessung | L x W x H: 15 x 13 x 2,15 mm (typisch) |
Wi-Fi-Schnittstelle | Unterstützung von SDIO V3.0 |
BT Schnittstelle | UART / PCM |
Betriebstemperatur | 0°C bis 70°C |
Lagertemperatur | -40°C bis 125°C |
Empfohlene Betriebsbewertung
- Ich weiß nicht. | Das ist typisch. | Max, du bist ein guter Mann. | Einheit | |
Betriebstemperatur | 0 | 25 | 70 | Deg.C |
VCC33 | 3.15 | 3.3 | 3.45 | V |
VDDIO | 1.7 | 1.8 oder 3.3 | 3.45 | V |
Blockdiagramm
Verpackung
